The Exploration tool (Tools β†’ Exploration) allows you to dynamically navigate through the asset relationship graph. It reveals dependencies between layers: upward (abstract / business) or downward (concrete / physical).

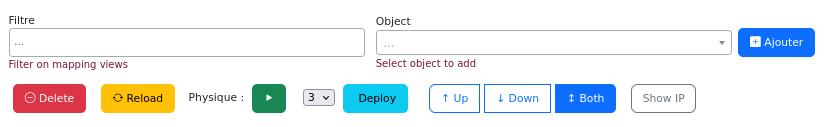

1. Interface

UI Element Type Role
Filter Text field Filters the cartography views (e.g., Applications)
Object Dropdown list Selects the asset to explore (e.g., HR-Solution)
Add Blue button Adds the selected asset to the graph window
Physical Green toggle Enables/disables the display of physical links
Level (1–5) Selector Number of relationship levels to expand
Deploy Green button Launches the exploration based on the defined parameters
↑ Up Cyan button Expands toward upper layers (abstract / business)
↓ Down Cyan button Expands toward lower layers (concrete / physical)
↕ Both Cyan button Expands in both directions simultaneously
Remove Red button Removes the selected asset from the graph
Reset Yellow button Completely resets the graph
Show IP Grey button Displays IP addresses on network assets

2. Understanding the Filter Field

⚠️ Critical point: the Filter field has a dual effect that is essential to understand before exploring the graph.

2.1 Effect 1 β€” Restricting the "Object" dropdown list

This is the most intuitive use. By entering a view in the Filter field (e.g. Applications), the "Object" dropdown will only display assets belonging to that view. This avoids having to search for an asset across the entire CMDB.

2.2 Effect 2 β€” Limiting asset visibility in the graph (a common pitfall)

This is the least expected effect, and the most frequent source of errors. The filter does not simply restrict the " Object" list: it also determines which asset types will be displayed in the graph during exploration.

In practice: if you explore a logical-server with only Logical Infrastructure in the filter, any applications linked to that server will never appear in the graph, even if they exist in Mercator and are correctly associated. They are simply excluded because their type is not covered by the active filter.

Illustrated example:

Active filter Explored asset Result in the graph
Logical Infrastructure LOGICAL-SERVER-RH-11 Visible: NETWORK-CORE-11, SUBNET-CORE-11, SUBNET-VIRT-111 β€” but not RH-Solution
Applications + Logical Infrastructure LOGICAL-SERVER-RH-11 Also visible: RH-Solution and DB-RH-PROD
(empty) Any asset All linked assets are visible, across all layers

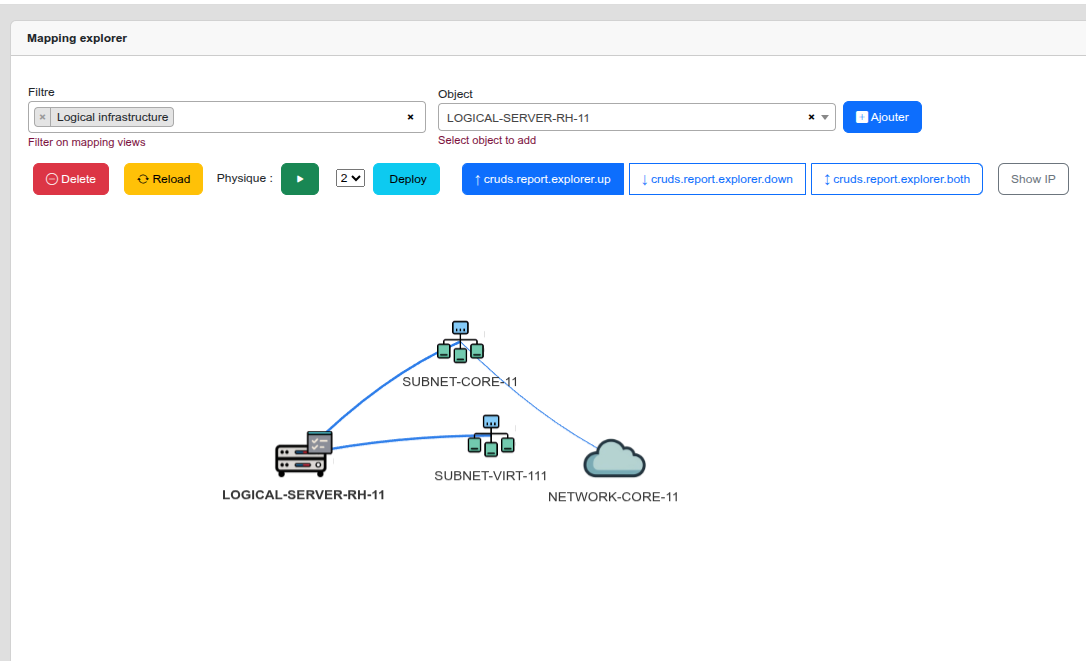

With filter "Logical Infrastructure" only: RH-Solution does not appear.

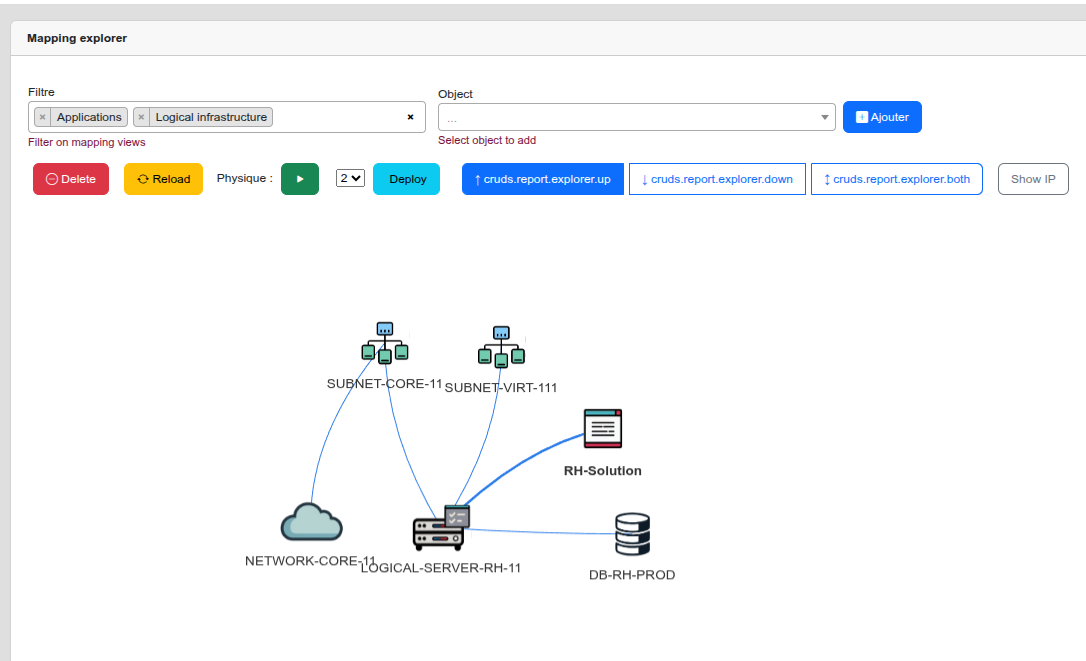

With filters "Applications" + "Logical Infrastructure": RH-Solution and DB-RH-PROD appear.

2.3 Practical rule: which filter should I use?

Objective Recommended filter
Quickly find an asset in a specific view Enter only the targeted view (e.g. Applications)
Cross-layer exploration (application + infrastructure) Enter all relevant views, or leave empty
Full impact analysis (all layers) Leave the filter empty to exclude nothing
Exploration limited to a single layer (e.g. network only) Enter only that layer's view

πŸ’‘ Tip: when in doubt about what you are looking for, always start with an empty filter. You can narrow it down afterwards if the graph becomes too dense.


3. Semantics of Directional Buttons

The direction is relative to the Mercator layer hierarchy, aligned with ArchiMate:

↑ UP    ═══════════════════════════════════════════════  toward 100 (Business)
         Layer 1: Entities, Processes, Actors       (100–260)
         Layer 2: Applications, Modules, DBs        (300–340)
         Layer 3: IAM, Active Directory             (400–460)
         Layer 4: Networks, VMs, Containers         (500–580)
         Layer 5: Physical, Sites, Racks            (600–675)
↓ DOWN  ═══════════════════════════════════════════════  toward 675 (Physical)
Button Direction Meaning Example from HR-Solution
↑ Up Toward upper layers Navigates up to the business layer, processes, and actors that use this asset Application β†’ HR Process β†’ HR Director Actors
↓ Down Toward lower layers Navigates down to the infrastructure, servers, and networks that support this asset Application β†’ VM β†’ Physical Server β†’ Rack β†’ Site
↕ Both Bidirectional Full view: who uses this asset AND what it relies on Process ← Application β†’ Server β†’ Physical

4. Step-by-Step Usage Procedure

Step 1 ─ Enter a filter (optional)
          └─ "Filter" field: e.g. "Applications"
             Restricts the object list to a specific view

Step 2 ─ Select the starting asset
          └─ "Object" dropdown: e.g. "HR-Solution"

Step 3 ─ Add the asset to the graph
          └─ Click the blue "Add" button
             The asset appears in the graph window

Step 4 ─ Select the asset in the graph
          └─ Click the asset icon in the graph area
             (it must be active / selected)

Step 5 ─ Choose the direction
          └─ Click: ↑ Up  |  ↓ Down  |  ↕ Both

Step 6 ─ Set the number of levels
          └─ Numeric selector: 1 to 5
             Start with 1 or 2 for highly connected assets

Step 7 ─ Deploy
          └─ Click the green "Deploy" button
             The graph is built with the relationships found

Step 8 ─ Iterate (optional)
          └─ Click another node in the graph
             Repeat from Step 4

5. Exploration Examples

5.1 Business Impact of an Application

Context: Which business processes and actors depend on HR-Solution?

Parameter Value
Filter Applications
Object HR-Solution
Direction ↑ Up
Levels 3

Expected result:

HR-Solution
 └── APPLI-HR-MOD-1 (module)
      └── HR Management Process
           └── Actor: HR Department

You obtain the list of all processes and actors that functionally depend on this application.


5.2 Infrastructure Supporting an Application

Context: What physical hardware does HR-Solution run on? (for DRP, ITIL impact analysis, CMDB)

Parameter Value
Filter Applications
Object HR-Solution
Direction ↓ Down
Levels 3

Expected result:

HR-Solution
 β”œβ”€β”€ APPLI-HR-SRV-1 (application service)
 └── DB-HR-PROD (database)
      └── VM-APP-HR-01 (logical server)
           └── SRV-PROD-01 (physical server)
                └── RACK-A3 (rack)
                     └── Site DC-Paris

You obtain the complete chain from the application down to the physical site.


5.3 Full Impact Analysis (Before Maintenance / Incident)

Context: Full view of ALL dependencies of HR-Solution before maintenance.

Parameter Value
Filter Applications
Object HR-Solution
Direction ↕ Both
Levels 3

Expected result:

         Macro-process: Personnel Management
              └── HR Process β†’ HR Director Actor
                       ↑
              [HR-Solution]  ← central asset
                       ↓
         APPLI-HR-SRV-1 Β· APPLI-HR-MOD-1 Β· DB-HR-PROD
              └── Logical Servers β†’ Physical β†’ Racks β†’ Site

Ideal for architecture dossiers and impact analyses.


5.4 Direction Selection by Use Case

Use Case Direction Layers Traversed
Who uses this application? ↑ Up Application β†’ Process β†’ Actors
What does this server run on? ↓ Down Logical Server β†’ Physical β†’ Rack β†’ Site
Full impact analysis ↕ Both Business ↔ Application ↔ Infrastructure
Which processes depend on a DB? ↑ Up Database β†’ Application β†’ Process
Which network equipment under a VLAN? ↓ Down VLAN β†’ Switch β†’ Physical Router
AD domain mapping ↕ Both AD Forest β†’ Domain β†’ Admin Zone β†’ Servers
Which assets does an actor use? ↓ Down Actor β†’ Process β†’ Application β†’ Infrastructure

6. BPMN β€” ArchiMate β€” Mercator Mapping

Mercator Asset BPMN 2.0 ArchiMate 3.1 TOGAF
entities (100) Pool / Lane Business Actor Organizational Unit
macro-processes (200) Process (level 1) Business Process Business Function
processes (210) Sub-Process Business Process Business Service
activities (220) Task / Activity Business Function Business Function
tasks (240) Task (atomic) Business Interaction β€”
actors (250) Lane / Performer Business Role Business Actor
information (260) Data Object Business Object Data Entity
applications (310) β€” Application Component Application Component
application-services (320) β€” Application Service Application Service
databases (340) Data Store Data Object Data Store
logical-servers (580) β€” System Software Platform Service
physical-servers (615) β€” Device Technology Component
sites (600) β€” Location Geography

ArchiMate Relations in Mercator

ArchiMate Relation Exploration Direction Mercator Example
Serving ↑ Up Application Service serves a Business Process
Realization ↕ Both Application realizes a Business Service
Assignment ↓ Down Logical Server assigned to Physical Server
Composition ↓ Down Site contains Buildings contains Bays
Association ↕ Both Application associated to Database

7. Best Practices

7.1 Exploration Recommendations

Start with level 1 or 2 For highly connected assets (e.g., a central application), starting with 1 or 2 levels avoids an unreadable graph. Increase progressively from there.

Use the filter to target specific views The Filter field restricts available objects to a specific view, avoiding the need to search through the entire CMDB.

Physical Mode Enable the Physical toggle only when you want to visualize physical network links (WAN/LAN/MAN). When disabled, the exploration stays at the logical level.

7.2 Asset Entry Recommendations

  • Follow Mercator numbering: create assets from the physical layer (600+) before associating them to logical layers.
  • Physical containment relationships must be entered in order: Site β†’ Building β†’ Bay β†’ Physical Server.
  • A logical-server (VM) must always be linked to a physical-server for ↓ Down navigation to work correctly.
  • certificates (570) are cross-cutting: associate them to both applications AND logical servers for complete exploration.
  • external-connected-entities (540) can be linked to the business layer (partners) or the network layer (connections) depending on context.

7.3 Use Cases by User Profile

Profile Preferred Direction Typical Use Case
Enterprise Architect ↑ Up Tracing alignment between infrastructure and business processes
Infrastructure Architect ↓ Down Identifying the physical chain supporting an application
CISO / Risk Manager ↕ Both Mapping dependencies for risk analysis
CMDB Manager ↓ Down Verifying completeness of physical chaining
Crisis / DRP Manager ↕ Both Impact analysis before/after an incident
